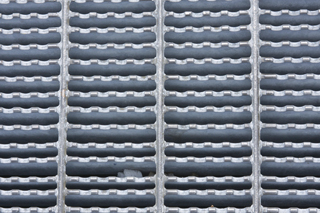

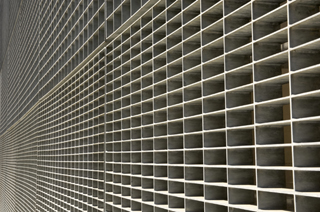

Bar Grating
"Used universally for walkway and catwalk decking applications. Ideal for most commercial and industry uses." We can offer a wide variety of panels from stock or custom fabricate to your needs. We offer steel, aluminum, also stair tread (with or without nosing), and fiberglass grating for your needs.

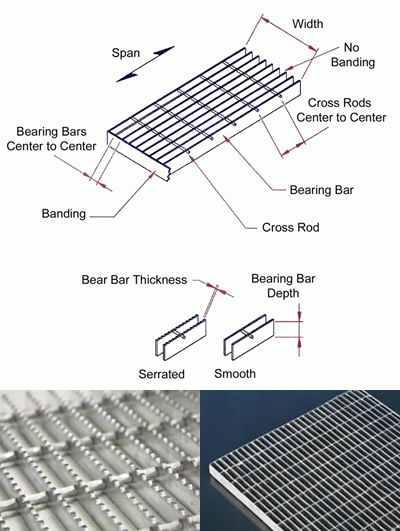

Welded Bar Grating Sizes and Weights
BEARING BAR SIZE | 19-W-4 | 19-W-2 | 15-W-4 | 15-W-2 |
|---|---|---|---|---|
| LBS SF | LBS SF | LBS SF | LBS SF | |
| 3/4″ X 3/16″ | 5.5 | 6.0 | 6.6 | 7.3 |
| 1″ X 1/8″ | 4.9 | 5.5 | 5.9 | 6.6 |
| 1″ X 3/16″ | 7.1 | 7.2 | 8.6 | 9.2 |
| 1″ X 1/4″ | 9.2 | 10.0 | 11.5 | 12.3 |
| 1-1/4″ X 1/8″ | 6.0 | 6.4 | 7.2 | 7.8 |
| 1-1/4″ X 3/16″ | 8.7 | 9.0 | 10.4 | 11.1 |
| 1-1/4″ X 1/4″ | 11.4 | 12.0 | 14.1 | 14.9 |
| 1-1/2″ X 1/8″ | 7.1 | 7.5 | 8.3 | 9.1 |
| 1-1/2″ X 3/16″ | 10.3 | 10.6 | 12.4 | 13.0 |
| 1-1/2″ X 1/4″ | 13.5 | 14.2 | 16.8 | 17.6 |
| 1-3/4″ X 3/16″ | 12.1 | 13.2 | 14.6 | 15.4 |
| 1-3/4″ X 1/4″ | 15.7 | 17.4 | 19.9 | 20.8 |
| 2″ X 3/16″ | 13.8 | 14.8 | 16.7 | 17.5 |
| 2″ X 1/4″ | 18.1 | 19.1 | 22.6 | 23.7 |
| 2-1/4″ X 3/16″ | 14.8 | 15.7 | 18.5 | 19.4 |
| 2-1/4″ X 1/4″ | 20.0 | 21.1 | 25.4 | 26.2 |
| 2-1/2″ X 3/16″ | 17.0 | 17.2 | 20.5 | 21.0 |
| 2-1/2″ X 1/4″ | 22.1 | 23.2 | 28.1 | 29.0 |
